| Code | SIZE Sq. mm | 3 CORE ROUND PACKING | Price 3 Core ROUND 90 Mtrs. ₹ | |
|---|---|---|---|---|
| STANDARD | SOLID | |||
| ZF-98 | 4.0 | 4 | – | |
| ZF-99 | 6.0 | 4 | – | |
| ZF-100 | 10.0 | 2 | – | |
| ZF-101 | 16.0 | 2 | ||
| ZF-102 | 25.0 | 2 | ||
| ZF-103 | 35.0 | 2 | – | |
| ZF-104 | 50.0 | 2 | – | |

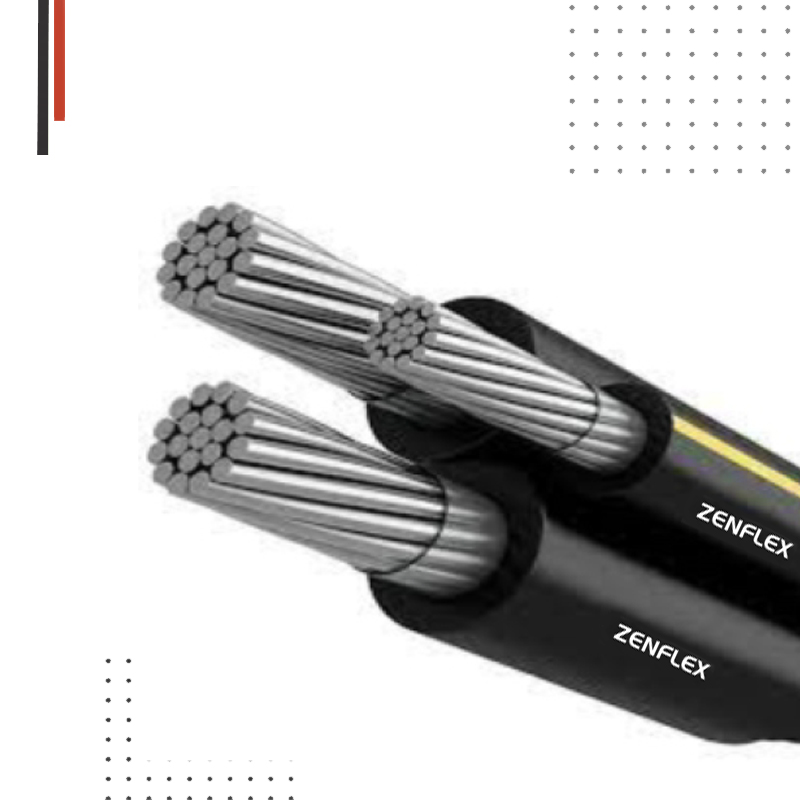

Aluminium Multicore Stranded Round Cables
| Nominal Cross Sectional area of conductor (SQ. MM) |
Number Nom. Dia of cond. strands (MM) |
Thickness of Insulation (Nom) (MM) |
Nominal Thickness of Sheath (MM) | Max Overall Dia (MM) | Current Rating AC (AMPS) | Max. Conductor Resistance at 20°C (Max) (OHMS) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | Single Phase DC | Three Phase | ||||
| 1.5 | 3/0.81 | 0.7 | 1.2 | 1.2 | 1.3 | 9.4 | 10.2 | 11.5 | 12 | 11 | 18.10 |
| 2.5 | 7/0.71 | 0.8 | 1.3 | 1.3 | 1.4 | 10.8 | 11.8 | 13.3 | 17 | 15 | 12.10 |
| 4.0 | 7/0.92 | 0.8 | 1.3 | 1.3 | 1.4 | 12.0 | 13.0 | 14.6 | 23 | 19 | 7.41 |
| 6.0 | 7/1.06 | 0.8 | 1.4 | 1.4 | 1.5 | 13.4 | 14.8 | 16.7 | 29 | 24 | 4.61 |
| 10.0 | 7/1.35 | 1.0 | 1.5 | 1.5 | 1.6 | 16.5 | 17.8 | 20.0 | 40 | 31 | 3.08 |
| 16.0 | 7/1.70 | 1.0 | 1.5 | 1.6 | 1.6 | 18.9 | 20.4 | 22.9 | 54 | 46 | 1.91 |
| 25.0 | 7/2.14 | 1.2 | 1.6 | 1.7 | 1.8 | 22.1 | 23.8 | 26.8 | 69 | 58 | 1.20 |
Aluminium Multicore Solid Round Cables
| Nominal Cross Sectional area of conductor (SQ. MM) |
Number Nom. Dia of cond. strands (MM) |
Thickness of Insulation (Nom) (MM) |
Nominal Thickness of Sheath (MM) | Max Overall Dia (MM) | Current Rating AC (AMPS) | Max. Conductor Resistance at 20°C (Max) (OHMS) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | Single Phase DC | Three Phase | ||||
| 1.5 | 1/1.40 | 0.7 | 1.2 | 1.2 | 1.3 | 9.4 | 10.2 | 11.5 | 12 | 11 | 18.10 |
| 2.5 | 1/1.78 | 0.8 | 1.3 | 1.3 | 1.4 | 10.9 | 11.8 | 13.3 | 17 | 15 | 12.10 |
| 4.0 | 1/2.24 | 0.8 | 1.3 | 1.3 | 1.4 | 12.0 | 13.0 | 14.6 | 23 | 19 | 7.41 |
| 6.0 | 1/2.76 | 0.8 | 1.4 | 1.4 | 1.4 | 13.4 | 14.8 | 16.7 | 29 | 24 | 4.61 |
| 10.0 | 1/3.57 | 1.0 | 1.5 | 1.5 | 1.6 | 16.5 | 17.8 | 20.0 | 40 | 33 | 3.08 |
ZENFLEX was established in the year 1990 to manufacture wires and cables for domestic and industrial use.
