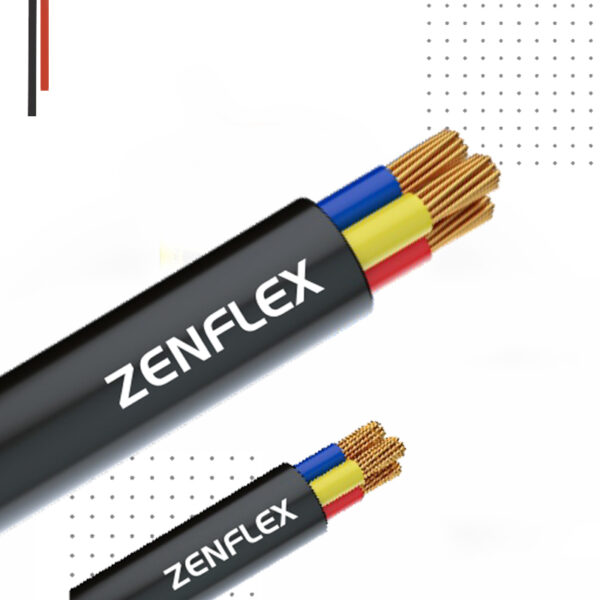

ZENFLEX manufactures and supply premium quality multi core flexible cables with copper conductor for various industrial and domestic applications for electrically operated Machines & Equipment’s (ex. Air-Conditioners/ Refrigerators/motors etc.)
Special formulated Polyvinyl Chloride (PVC) used for insulation and sheath tends to increase flexibility of cables. The sheathing material provides resistance to oil, and moisture and superior mechanical strength without losing its flexibility.
Benefits And Applications Of Multicore Cables
Space-saving: A multicore cable takes almost 40% less space than cables with similar functions. By combining multiple conductors with different functionalities in one cable, we end up saving space and the confusion that can ensue because of multiple cables pooling around.
Industrial Machinery: Plant engineering and installation
Installation In All Electrically Operated Machines:
These wires are flexible and provide optimal protection for machines and equipment that use electricity, including air conditioners, refrigerators, motors and more.
Control Panels:
These wires/cables are used for wiring in control panels, machines and various electrical installations in dry and damp interiors especially under typical industrial environmental conditions.
| Nominal Cross Sectional area of conductor (SQ. MM) |
Number Nom. Dia of cond. strands (MM) |
Thickness of Insulation (Nom) (MM) |
Nominal Thickness of Sheath (MM) |
Max Overall Dia (MM) |
Current Rating AC (AMPS) |
Max. Conductor Resistance at 20°C (Max) (OHMS) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | Single Phase DC | Three Phase | ||||
| 0.5 | 16/0.20 | 0.6 | 0.9 | 0.9 | 0.9 | 6.2 | 6.5 | 7.0 | 4 | 3 | 39.0 |
| 0.75 | 24/0.20 | 0.6 | 0.9 | 0.9 | 0.9 | 6.6 | 6.8 | 7.5 | 7 | 7 | 26.0 |
| 1.0 | 14/0.30 | 0.6 | 1.2 | 1.2 | 1.2 | 8.2 | 8.8 | 9.9 | 10 | 9 | 18.1 |
| 1.5 | 22/0.30 | 0.7 | 1.2 | 1.2 | 1.2 | 9.4 | 10.2 | 11.5 | 13 | 11 | 12.1 |
| 2.5 | 36/0.30 | 0.8 | 1.3 | 1.3 | 1.3 | 10.9 | 11.8 | 13.3 | 17 | 15 | 7.41 |
| 4.0 | 56/0.30 | 0.8 | 1.3 | 1.3 | 1.3 | 12.0 | 13.0 | 14.6 | 24 | 19 | 4.95 |
| 6.0 | 84/0.30 | 0.8 | 1.4 | 1.4 | 1.4 | 13.4 | 14.0 | 16.7 | 29 | 24 | 3.30 |
| 10.0 | 80/0.40 | 1.0 | 1.5 | 1.5 | 1.6 | 16.5 | 17.8 | 20.0 | 42 | 35 | 1.83 |
| 16.0 | 126/0.40 | 1.0 | 1.5 | 1.6 | 1.6 | 18.9 | 20.4 | 22.9 | 57 | 48 | 1.15 |
| 25.0 | 196/0.40 | 1.2 | 1.6 | 1.7 | 1.8 | 22.1 | 23.8 | 26.8 | 71 | 60 | 0.78 |
ZENFLEX was established in the year 1990 to manufacture wires and cables for domestic and industrial use.
